DOT-FCM Flexible Cable Markers
The DOT-FCM Flexible Cable Marker features and benefits:
• Print over 3,550 cable markers per hour (using 75mm/s standard print speed)
• Two label widths (13mm & 27mm) and lengths (76mm & 102mm) available ex-stock
• Two standard colours yellow and white available ex-stock
• DOT-FCM black ribbon provides superior resistance to scratching and solvents
• Cable markers produced with easy to tear perforation
• Quick and easy to install cable markers using cable ties
• Centralised gap in cable markers and gap sensor in printer mean no lining up required,minimising
• label wastage
• Cable markers attached in continuous format – no more losing loose labels
• DOT-FCM Flexible Cable Markers bend to shape of round cables
• Spool quantities of either 245 or 325 (approx) – less frequent changing required
• Solid thermal transfer printer made for industrial environments
• Pre-formatted DOT-FCM templates in user friendly DOTlabel Software, which can import information direct
• from Word and Excel
• DOT-FCM / Shrink System prints all sizes of DOT-FCM Flexible Cable Markers, all sizes of DOTshrink
• Heatshrink Tubing and DOTwrap4x2 wraparound self-adhesive labels
• Pre-print service available on request
• Print over 3,550 cable markers per hour (using 75mm/s standard print speed)
• Two label widths (13mm & 27mm) and lengths (76mm & 102mm) available ex-stock
• Two standard colours yellow and white available ex-stock
• DOT-FCM black ribbon provides superior resistance to scratching and solvents
• Cable markers produced with easy to tear perforation
• Quick and easy to install cable markers using cable ties
• Centralised gap in cable markers and gap sensor in printer mean no lining up required,minimising
• label wastage
• Cable markers attached in continuous format – no more losing loose labels
• DOT-FCM Flexible Cable Markers bend to shape of round cables
• Spool quantities of either 245 or 325 (approx) – less frequent changing required
• Solid thermal transfer printer made for industrial environments
• Pre-formatted DOT-FCM templates in user friendly DOTlabel Software, which can import information direct
• from Word and Excel
• DOT-FCM / Shrink System prints all sizes of DOT-FCM Flexible Cable Markers, all sizes of DOTshrink
• Heatshrink Tubing and DOTwrap4x2 wraparound self-adhesive labels
• Pre-print service available on request
DOT-FCM Flexible Cable Markers
The LUL approved DOT-FCM Flexible Cable Markers, which are made from a high quality LSOH (Low Smoke Zero Halogen), UV Stable and Fire Retardant material, are an easy to print alternative to the DOTcard System.
Manufactured by DOTgroup International in a continuous format these cable markers compliment our range of DOTshrink Heatshrink Tubing and allows users to produce over 3,550 cable markers per hour. All are printed via the reliable and easy to use DOT-FCM / Shrink System thermal transfer printer, which provides accurate printing
of all sizes of our DOT-FCM Flexible Cable Markers, DOTshrink Heatshrink Tubing and DOTwrap4x2 wraparound self-adhesive labels.
The LUL approved DOT-FCM Flexible Cable Markers, which are made from a high quality LSOH (Low Smoke Zero Halogen), UV Stable and Fire Retardant material, are an easy to print alternative to the DOTcard System.
Manufactured by DOTgroup International in a continuous format these cable markers compliment our range of DOTshrink Heatshrink Tubing and allows users to produce over 3,550 cable markers per hour. All are printed via the reliable and easy to use DOT-FCM / Shrink System thermal transfer printer, which provides accurate printing
of all sizes of our DOT-FCM Flexible Cable Markers, DOTshrink Heatshrink Tubing and DOTwrap4x2 wraparound self-adhesive labels.
Technical Data:
Test Data:
The following Test Accreditations have been attained from an independent UKAS certified Test House for
the full range of DOT-FCM Flexible Cable Markers:
the full range of DOT-FCM Flexible Cable Markers:
| Material: | LSOH (Low Smoke Zero Halogen), UV Stable & Fire Retardant |
| LUL Approved: | LUL (London Underground Ltd) Registration No: 993 |
| Marking: | Thermal Transfer via DOT-FCM / Shrink System Printer |
| Standard Colours: | Yellow and White |
| Non-Standard Colours: | Non Standard Colours can be made to order - MOQ will apply |
|
Material
|
Description
|
Dimensions
|
Spool Quanties
|
MOQ
|
|

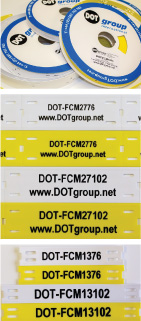

DOT-FCM1376
|
Cable Markers
|
13mm x 76mm
|
325 Cable Markers per spool (approx)
|
1 Spool
|
|
DOT-FCM13102
|
Cable Markers
|
13mm x 102mm
|
245 Cable Markers per spool (approx)
|
1 Spool
|
|
DOT-FCM2776
|
Cable Markers
|
27mm x 76mm
|
325 Cable Markers per spool (approx)
|
1 Spool
|
|
DOT-FCM27102
|
Cable Markers
|
27mm x 102mm
|
245 Cable Markers per spool (approx)
|
1 Spool
|
|
.ISO 4892-2: 1994
|
.Weathering test equivalent to 5 years exposure in a Northern European climate
|
|
.ISO 188: 1998
|
.Long term high temperature +85°C
|
|
.ISO 188: 1998
|
.Short term high temperature +180°C
|
|
.MIL-STD-810F: Method 502.4
|
.Long term low temperature -40°C
|
|
.MIL-STD-202G: Method 106G
|
.Long term humidity (4 weeks)
|
| .ASTM B117: 1987 | .Salt fog resistance (4 weeks) |
| .MIL-M-81531 | .Print adherence rub test |
| .SAE AS81531: Section 4.6.2: 1998 | .Print adherence rub test |
| .Chemical resistance | .Print adherence rub tests using 7 different chemicals |
| .IEC60068-2-52 | .Salt Mist (Cyclic 4 weeks) |
